Legacy Server Performance Analysis

Problem

Teachers saw heavy slowdowns on the Franklyn server: the student video preview updated every 3 minutes instead of the planned 5 seconds.

Agreement

We agreed to find the cause by building a simple load tester (see Issue #65) to reproduce the problem and analyze the server while it is running.

Approach

We reused the openbox project and added these settings:

spread: how spread out the client requests are (1 = spread, 0 = burst)
clients: number of clients sending requests
interval: seconds between requests per client (default 5s)
noise: how much noise the image contains (0 – 1)
- this affects PNG compression time (the more noise the more time it takes)
prefix: text added before each random client name that shows up in the instructor webui

A local run showed the tester is limited solely by bandwidth at around 2 GiB/s from a single laptop, so the only real bottleneck is bandwidth, meaning it is fully capable of stressing the Franklyn server to the point of a DDoS. The Franklyn server ran on the Franklyn 1 server and was port-forwarded to local 8080 from inside the school network to a local machine:

ssh -L 8080:localhost:8080 franklyn@franklyn.htl-leonding.ac.at

Test Runs (grouped)

All runs used --noise 0.23 --spread 1 --interval 5. The noise of 0.23 makes the server take ~400 ms to encode a single image to a PNG.

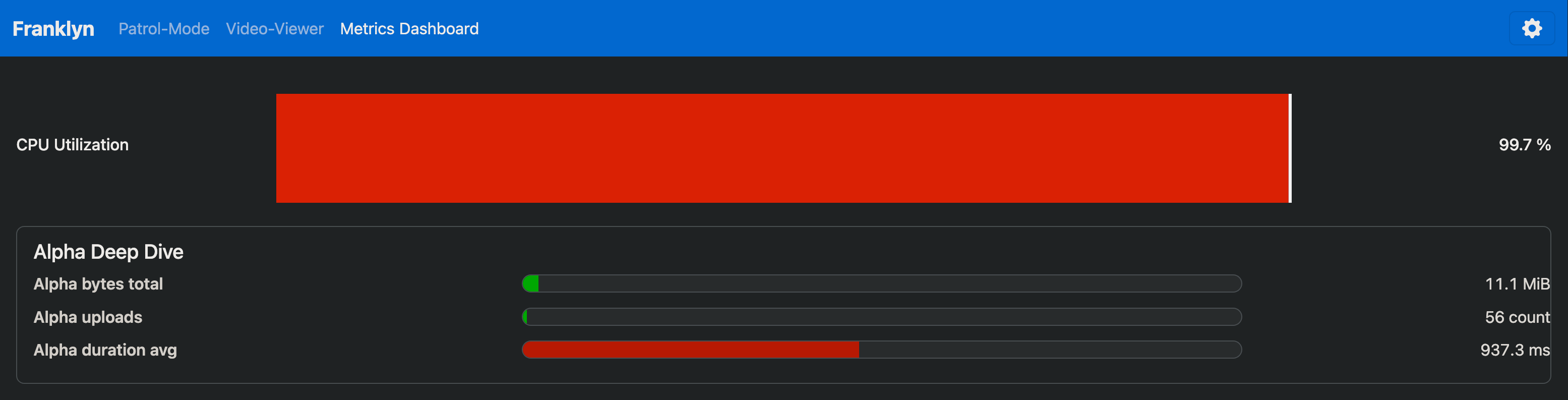

Run 1 — 75 clients (cargo run -- --clients 75)
- CPU: goes to 100%, then stable around 80+%
- Throughput: about 15 requests/s
- Per frame per thread: ~400 ms

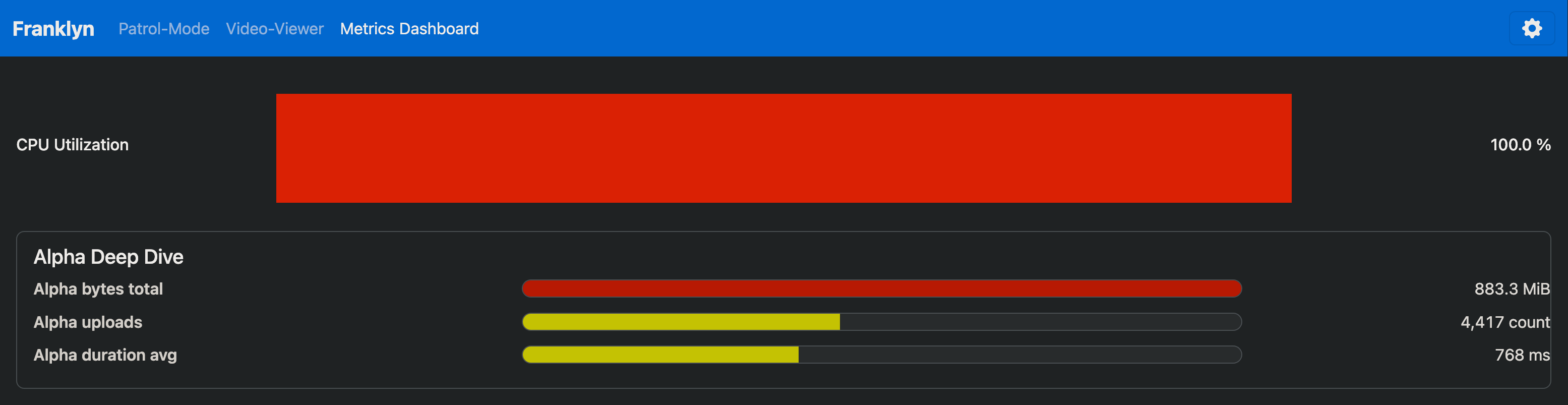

Run 2 — 80 clients (cargo run -- --clients 80)
- CPU: often 100%, mostly around 95%
- Throughput: about 16 requests/s
- Per frame per thread: ~750 ms

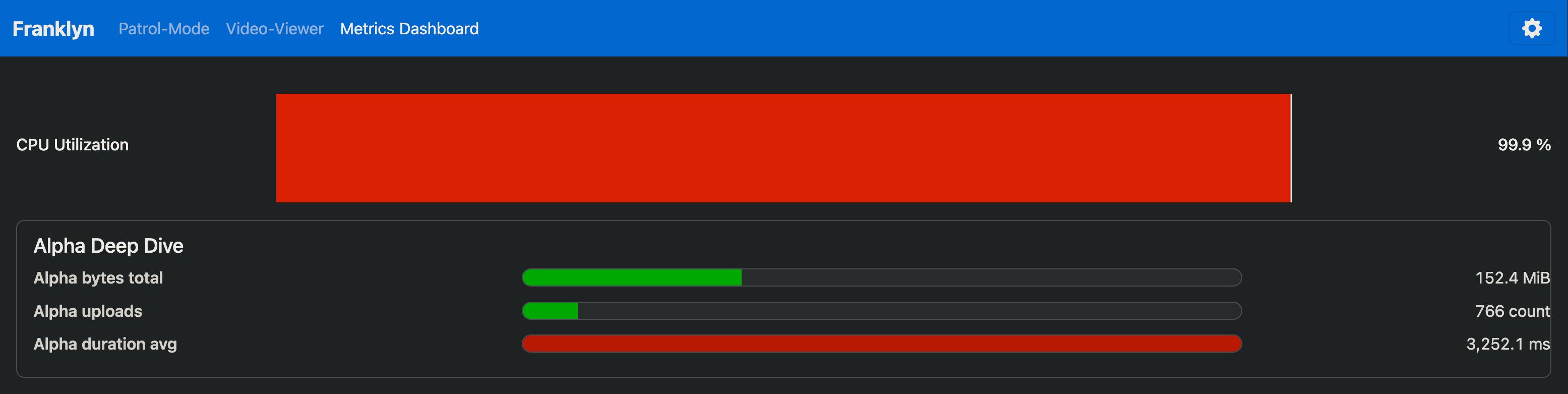

Run 3 — 90 clients (cargo run -- --clients 90)
- CPU: 100% all the time
- Per frame per thread: starts near 827 ms, climbs to ~4500 ms after 2:30
- Throughput: maxed out at about 16-17 requests/s
- Response times: API calls take several seconds

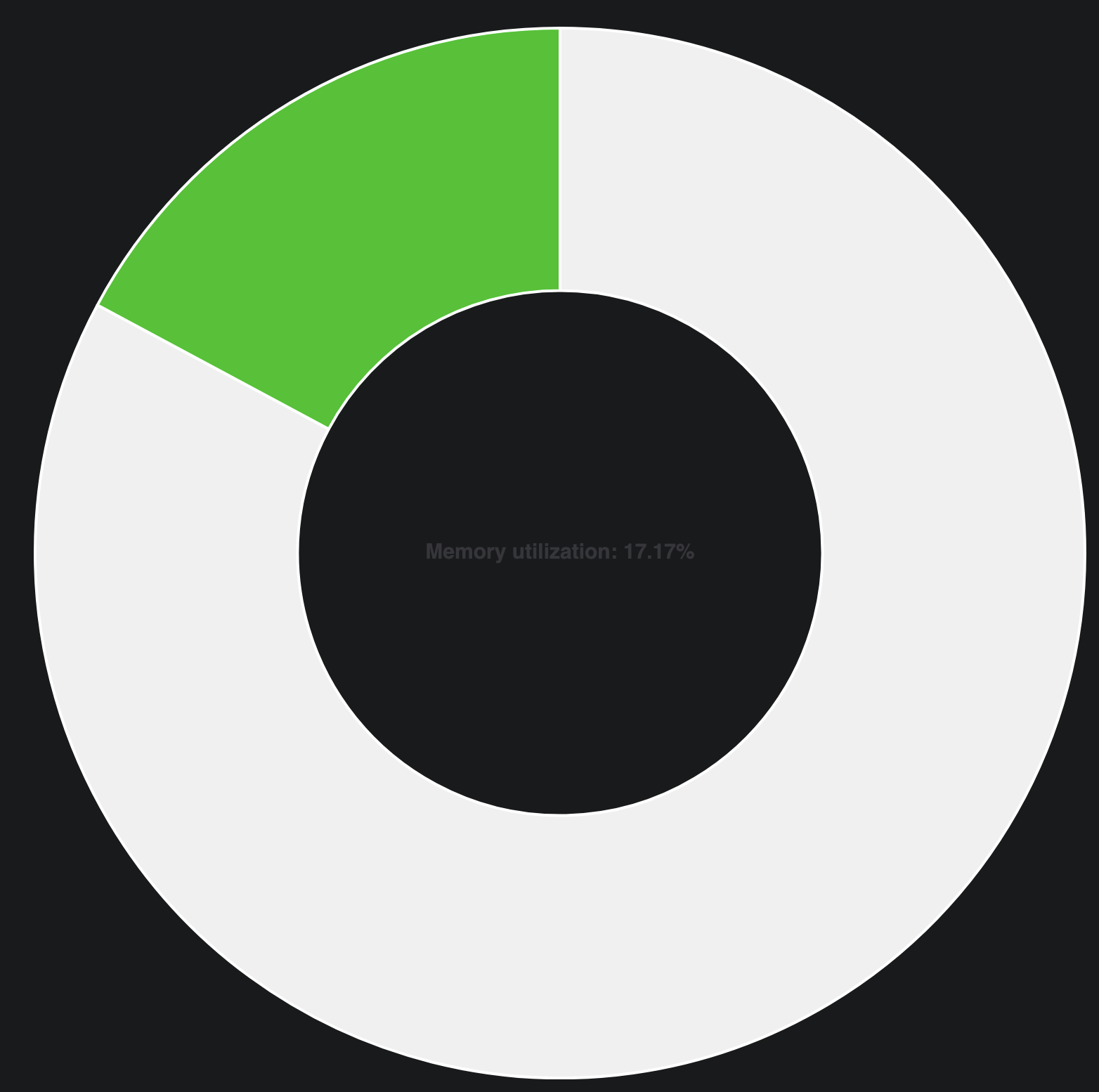

- Memory usage: 17% - 20%

Observations

The client sends a full frame every time instead of sending delta frames.
The bottleneck is encoding the image from a ByteArray and saving it to disk.

Conclusion

The server was slightly overwhelmed with 90 clients. This required 18 requests per second but the server can only handle 16-17 max. Because the server will accept every single request and has many requests pending the time for processing the images increases. Now that even fewer images are being processed, encoding times skyrocket and lead to a 3 minute delay after some time in the test.

Solution

Processing all frames locally per client and sending PNGs to the server and letting the server just handle communication will not put so much stress on the server. This will lead to a ~90+% performance gain as image encoding currently takes about ~90+% of the whole server load.
